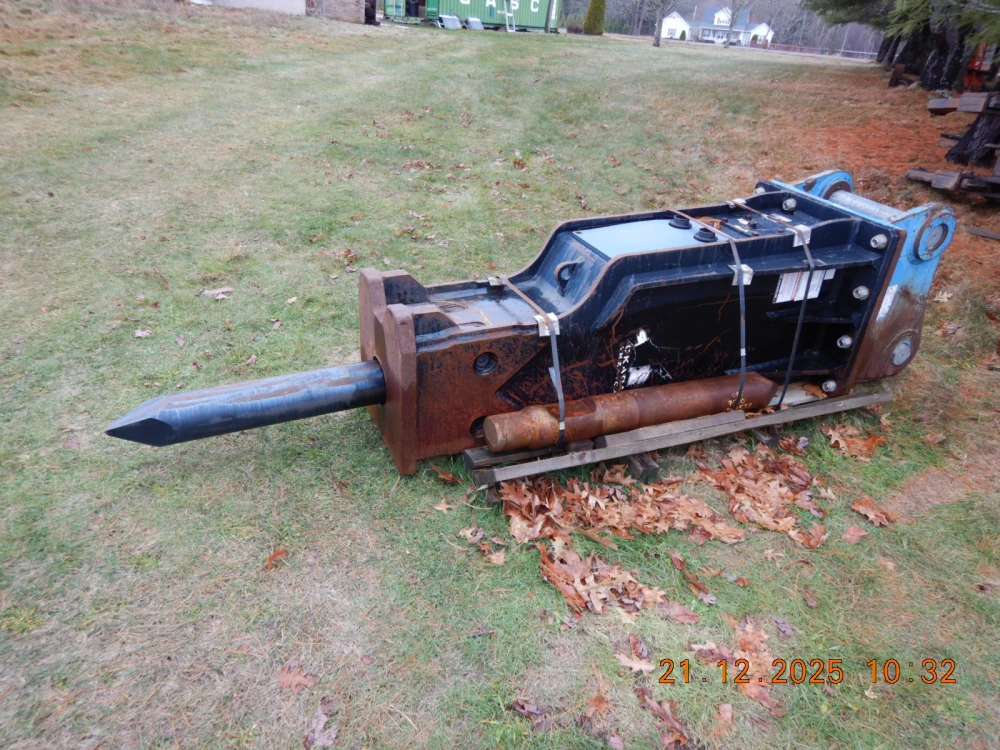

New 2023 105K OKADA 7500 FT LB 250450 EXCAVATOR BREAKER MidClass Hydraulic Breaker Factory Shop Rebuilt BY Okada Factory

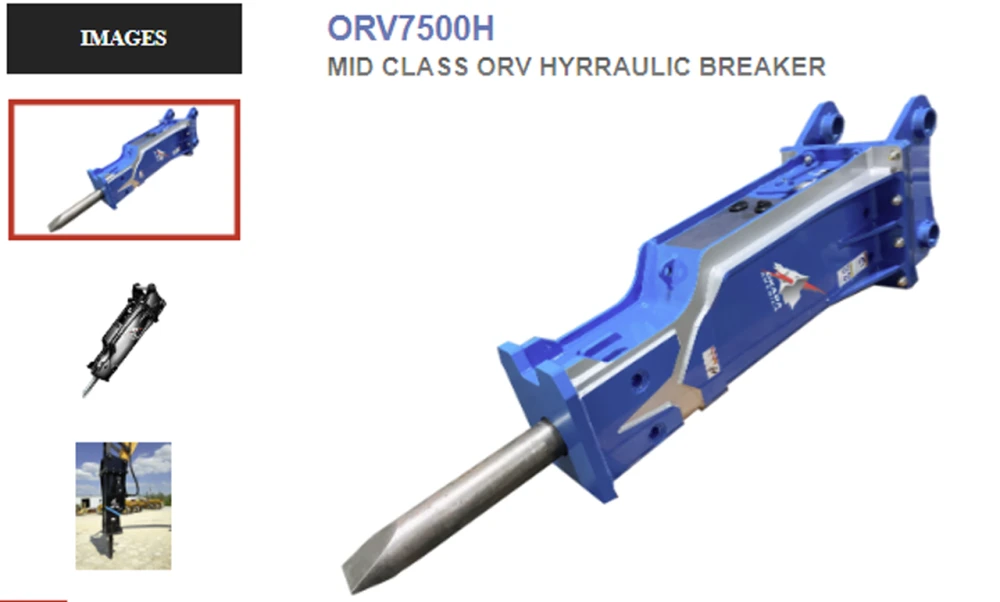

OKADA ORV7500 — Mid-Class Hydraulic Breaker

Factory Shop Rebuilt BY Okada Factory

* Location: Cambridge Narrows, NC (Ships directly from our yard or pickup)

* Price: $40,000.00

o New unit price from Okada: $105,000.00 CAD (approx.)

Key Features & Condition

* 2020 model, purchased in 2020

* Fully rebuilt in Oct 2023 (now considered a 2024 unit after Stage 2 rebuild)

* Complete rebuild performed at Okada’s Oregon factory

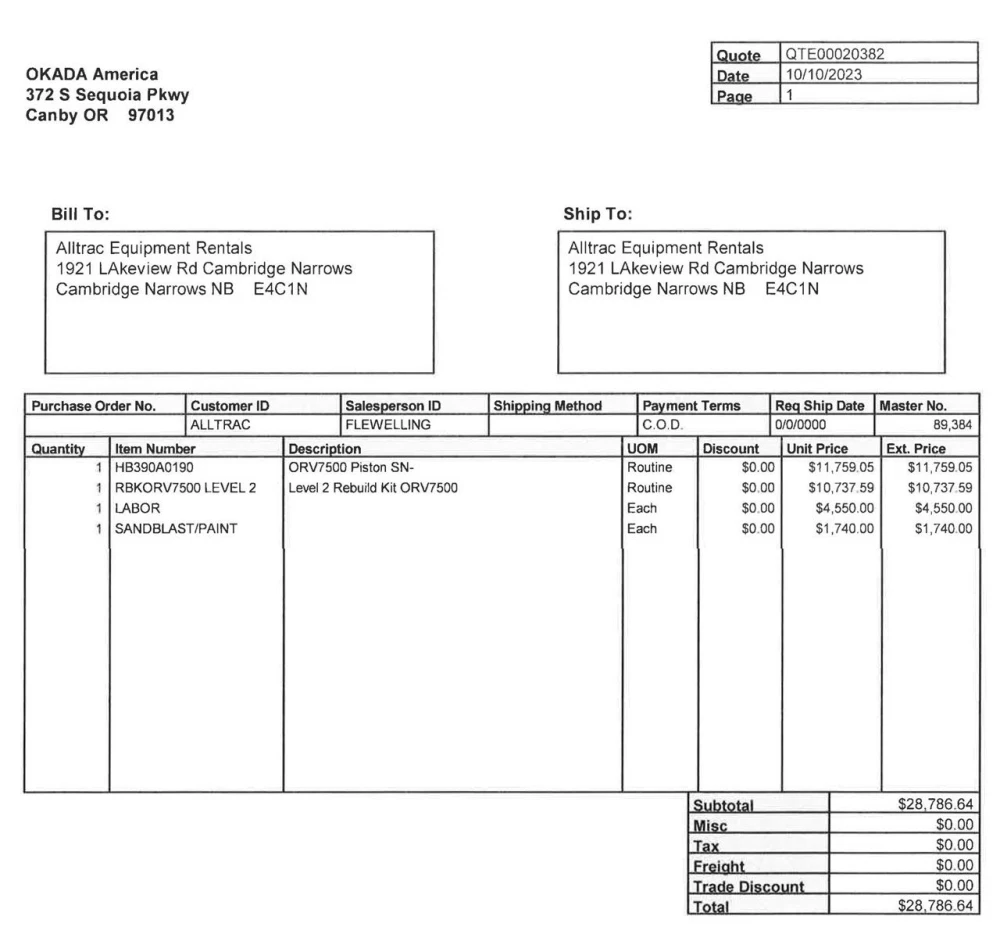

o Cost of rebuild: $27,000.00 USD / $37,000.00 CAD SEE IMAGR #3

* Rebuild includes:

o All new bushings

o New seal kit

o New piston

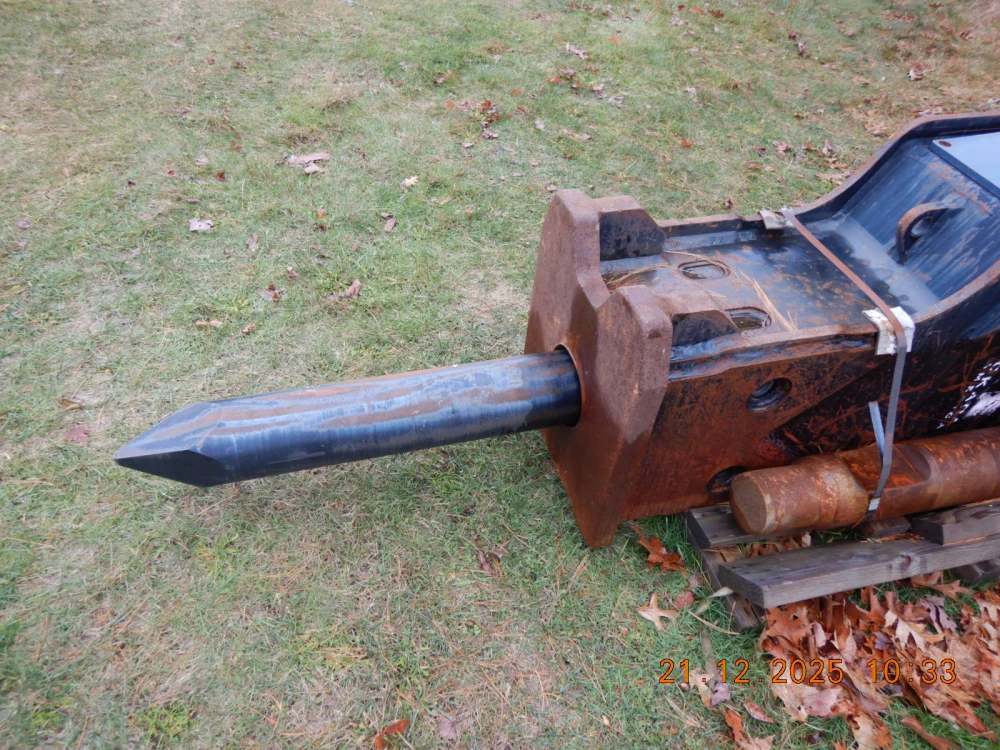

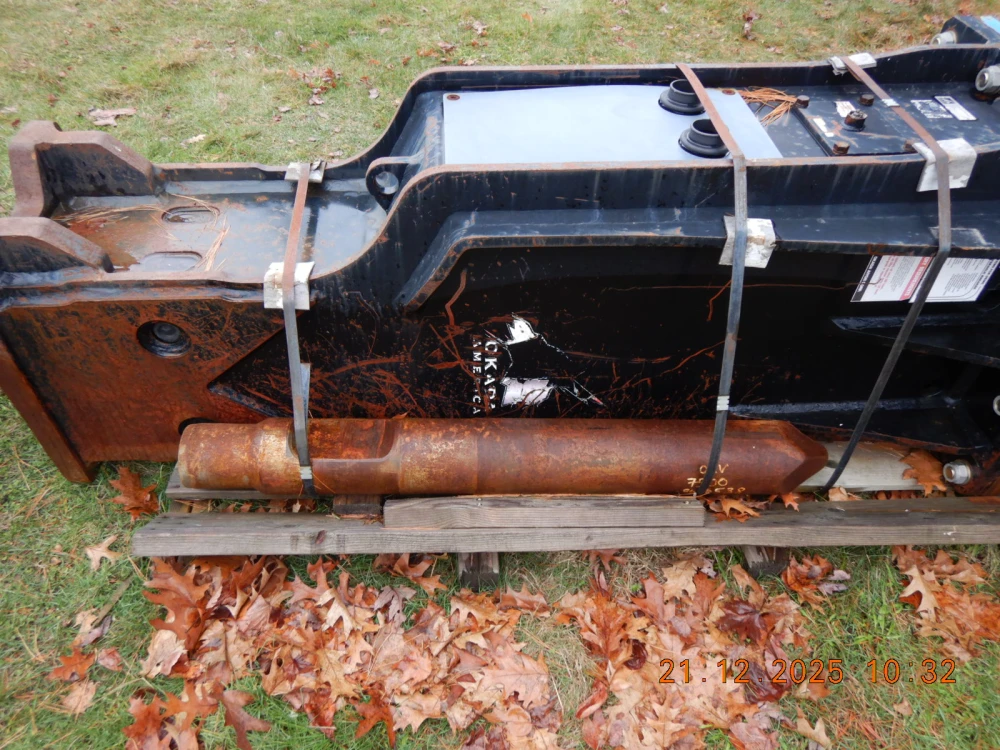

o 2 Moil Points:

+ 1 brand new original Okada moil point

+ 1 slightly used original Okada moil point

o Resealed at Okada factory repair shop

+ Light use prior to COVID, resealed due to sitting idle

o New nitrogen charge for optimal performance

Ready to Work

* Okada ORV7500 hydraulic demo hammer / breaker / 2x chisel attachment tool

* Low-hour 7500 ft-lb hammer — used for only one job before COVID

* Factory-tested & certified rebuild

* Invoice available (see image #3)

* Shipped on our account for fast service & great freight rates or ship on your account

* Price: $40,000.00 CAD

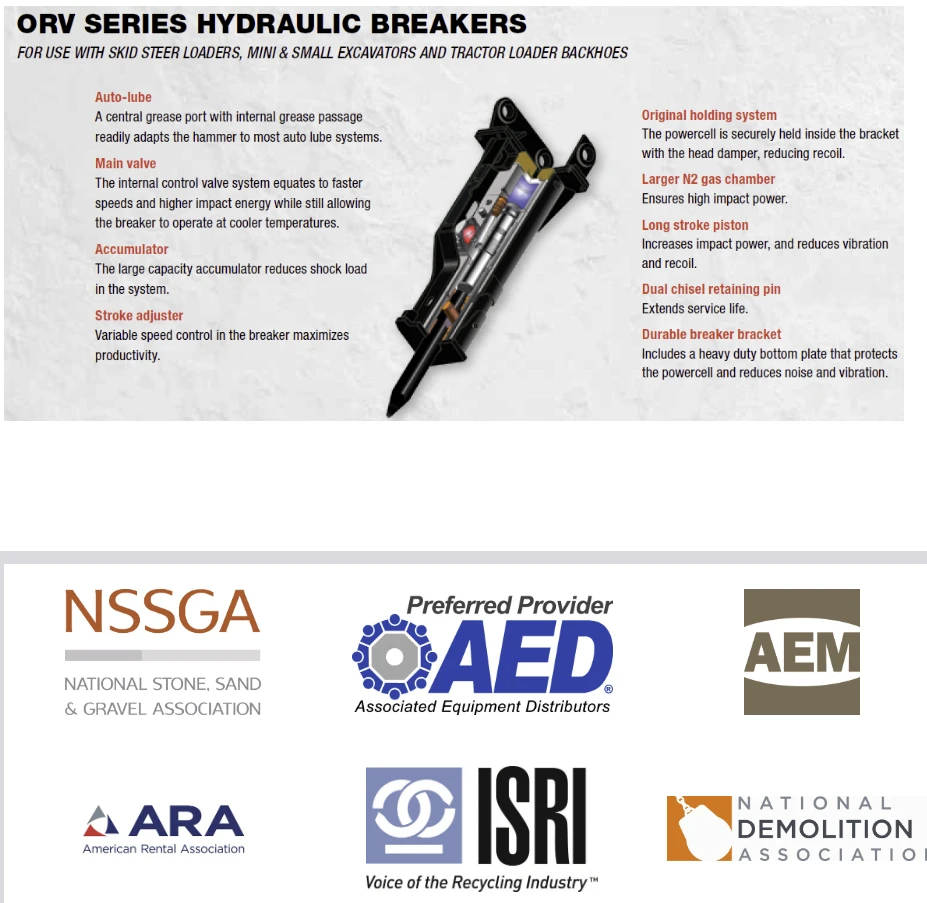

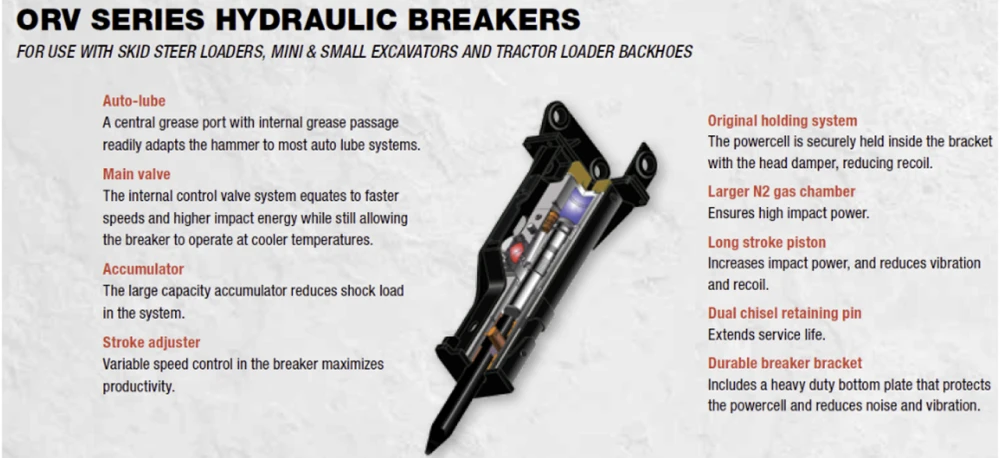

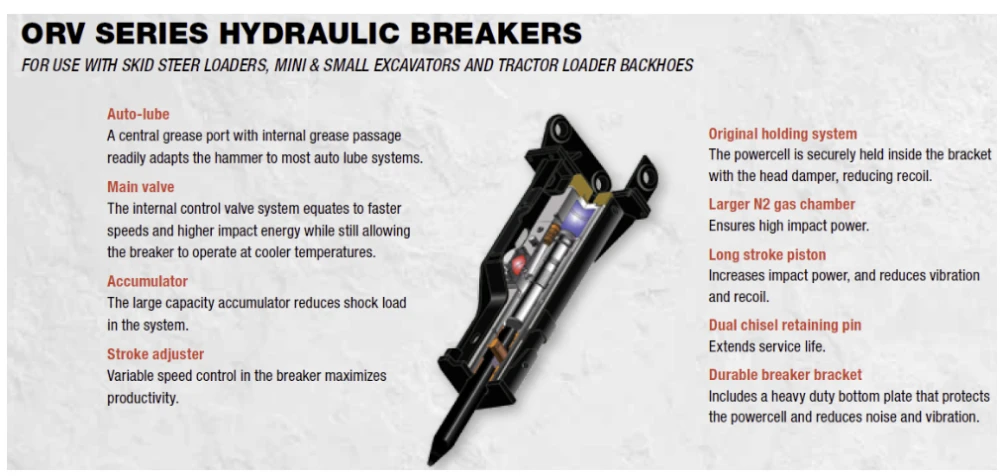

Why Choose the Okada ORV7500?

* Auto-lube system: easily adaptable to most automatic lubrication setups

* Main valve: internal control valve system increases impact energy & keeps temperatures lower

* Large capacity accumulator: reduces shock load in the system

* Stroke adjuster: variable speed control maximizes productivity

* Original holding system: secure powercell placement reduces recoil

* Larger N₂ gas chamber: ensures high-impact power

* Long stroke piston: boosts impact power while reducing vibration & recoil

* Dual chisel retaining pin: heavy-duty pins extend service life

* Durable breaker bracket: heavy-duty bottom plate for noise & vibration reduction

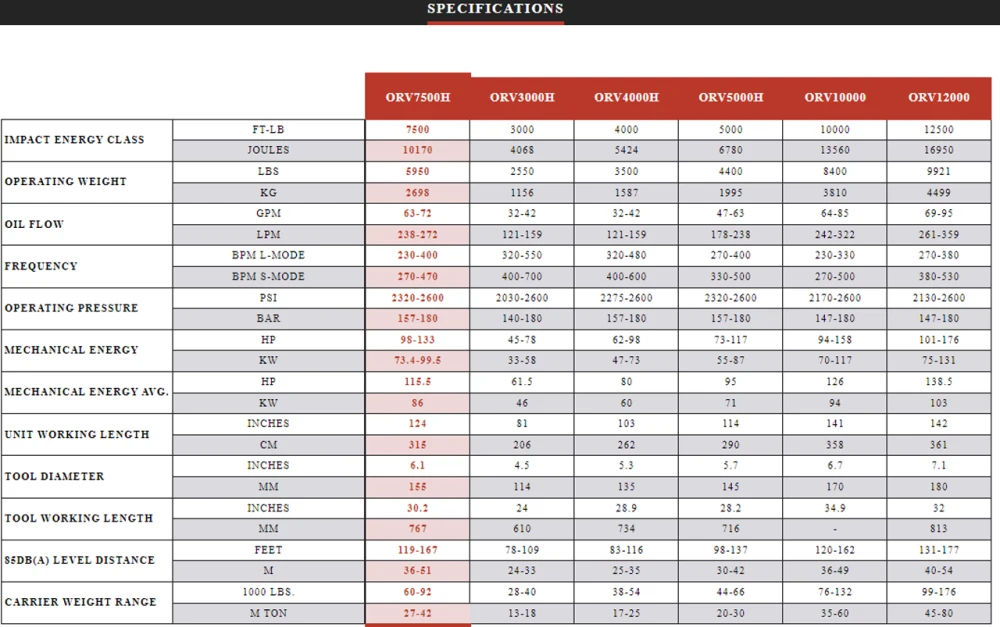

Technical Specifications

* Impact Energy Class: 7,500 ft-lb / 10,170 Joules

* Operating Weight: 5,950 lbs / 2,698 kg

* Oil Flow: 63–72 gpm / 238–272 lpm

* Frequency:

o L-Mode: 230–400 bpm

o S-Mode: 270–470 bpm

* Operating Pressure: 2,320–2,600 psi / 157–180 bar

* Mechanical Energy:

o Range: 98–133 HP / 73.4–99.5 kW

o Average: 115.5 HP / 86 kW

* Dimensions & Tooling:

o Unit working length: 124 in / 315 cm

o Tool diameter: 6.1 in / 155 mm

o Tool working length: 30.2 in / 767 mm

* Noise Level: 85 dB(A) at 119–167 ft / 36–51 m

* Carrier Weight Range:

o 60–92,000 lbs / 27–42 metric ton

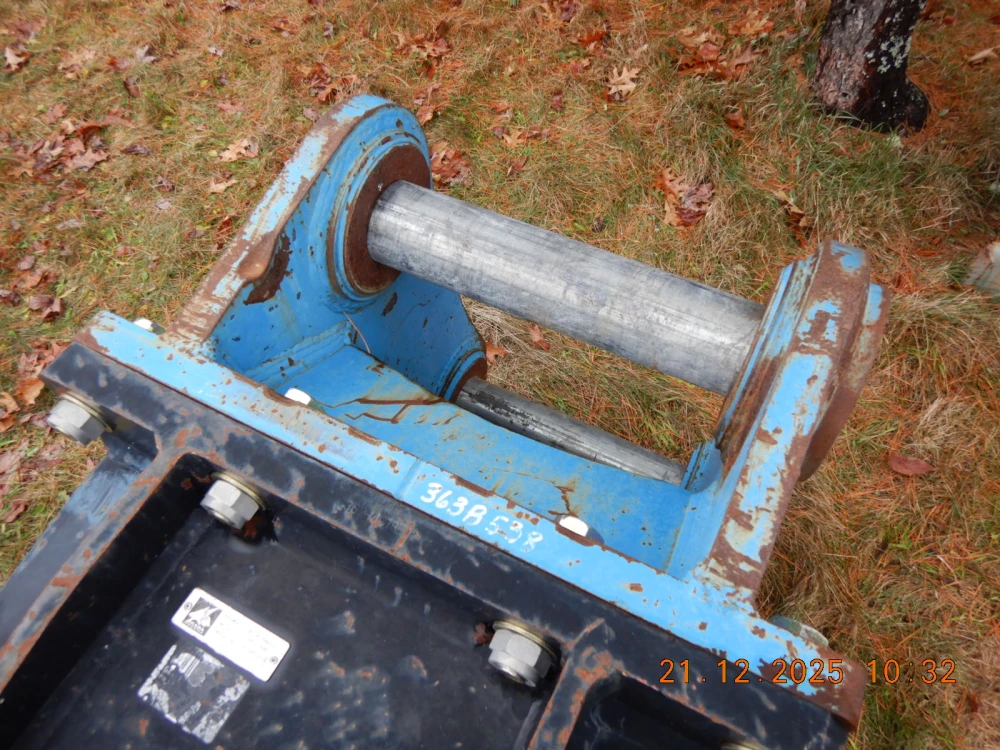

Note: Just had 2 new quality 100 mm pins installed for the following spacings:

Distance between the ears: 16.75 inches

Center to center on pins: 23. inches

PRICE REDUCED – QUICK SALE

Reason for Sale

* Selling due to a family health matter requiring relocation from the Fraser Valley, BC

* Severe smog and forest fire smoke caused extreme COPD, prompting the move

* Assets are being reduced to eliminate ongoing storage costs

* All items are properly stored, maintained, and priced for immediate sale

* Listings are removed promptly once sold

Loading, Shipping & Logistics

* Specialized 4-Wheel Drive 12,000 lb Forklift on Site

* We load your carrier

* Fast shipping quotes available

* Buyers may use their own shipper

Shipper Address:

1921 Lakeview Road

Cambridge-Narrows, NB

E4C 1N1

CONTACT — SERIOUS INQUIRIES ONLY

Frank

604-476-7777 (Call or Text)

☎️ Toll-Free: 1-(833)-693-9323

WhatsApp: +1-604-476-7777

Email: [email protected]

Website: www.alltrac.co

Please no “Is this still available?” messages

➡️ Such messages will be ignored

➡️ If the ad is live, the item is available
