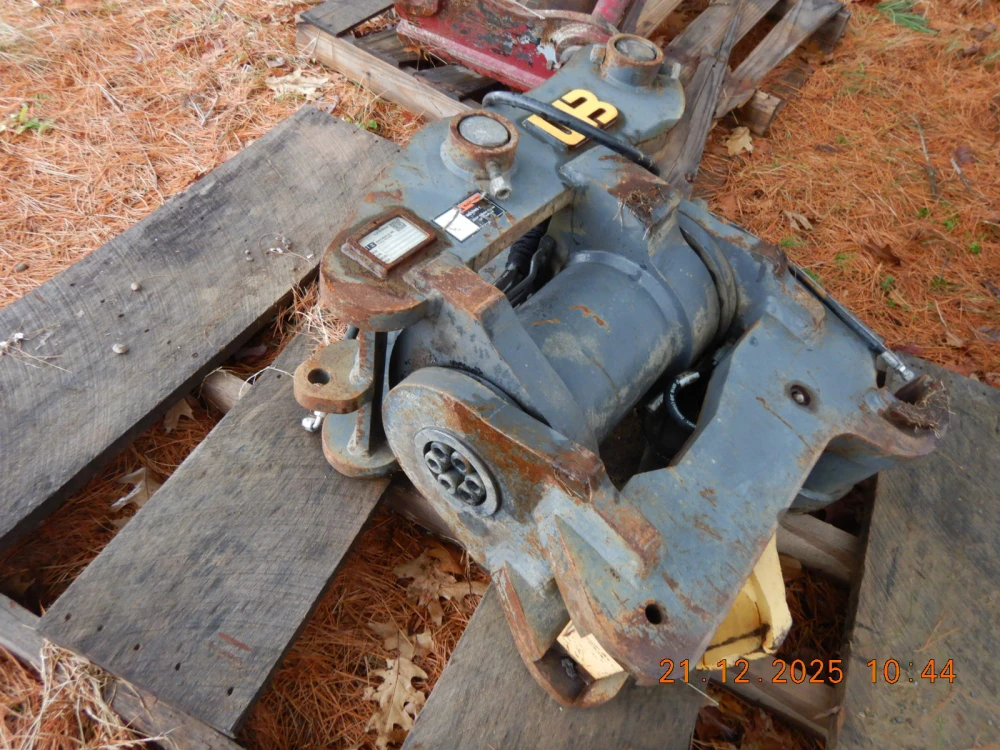

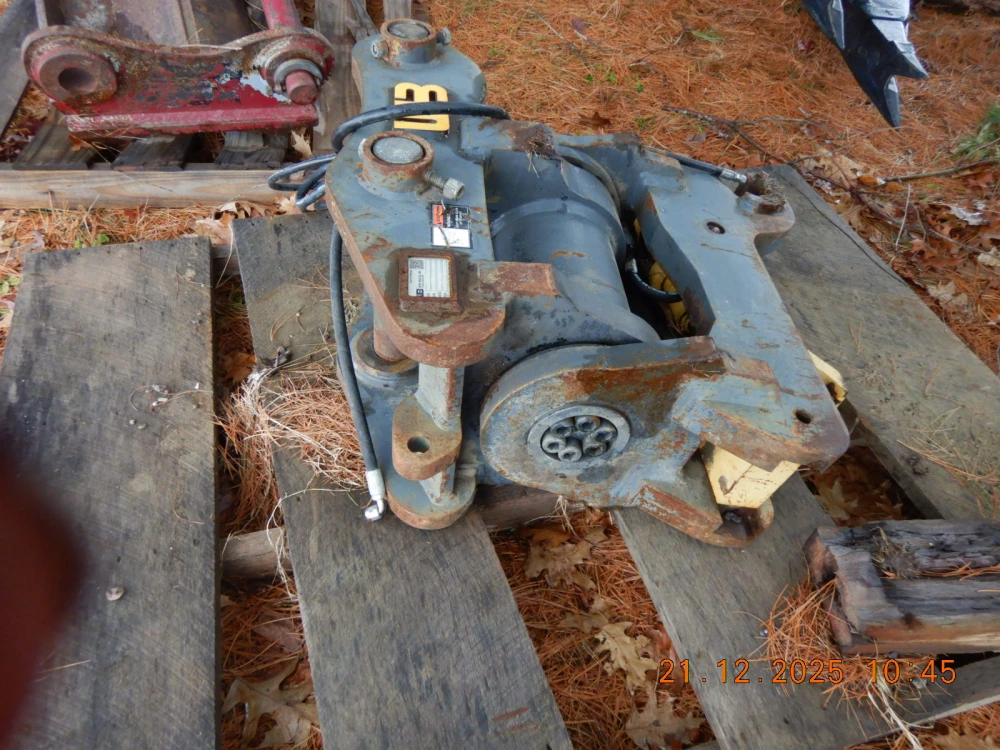

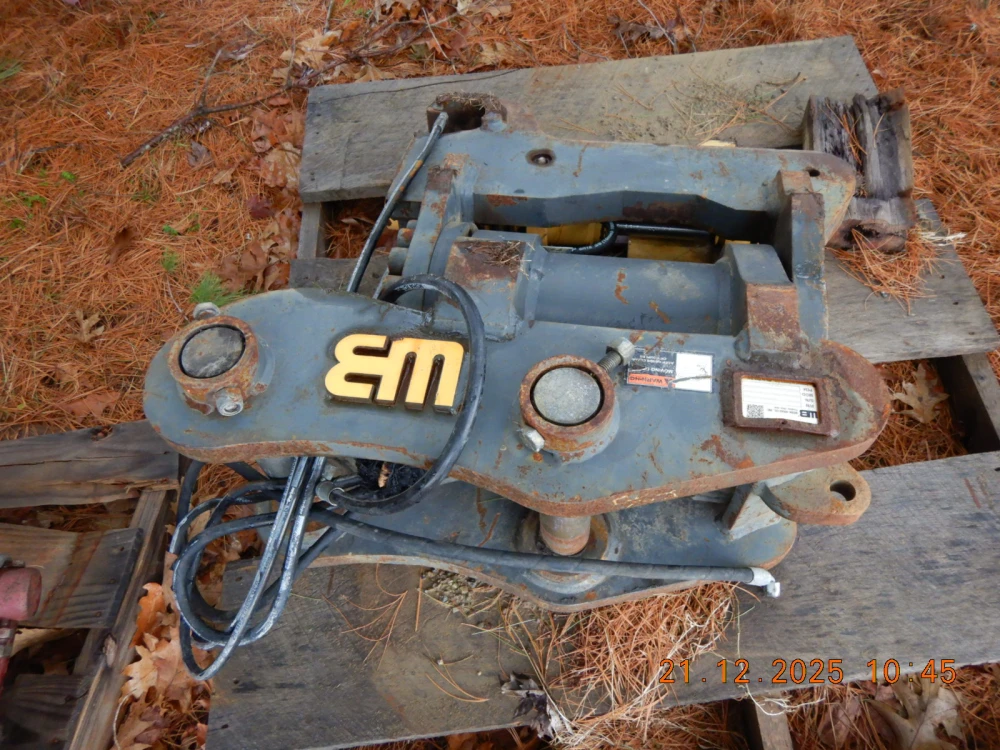

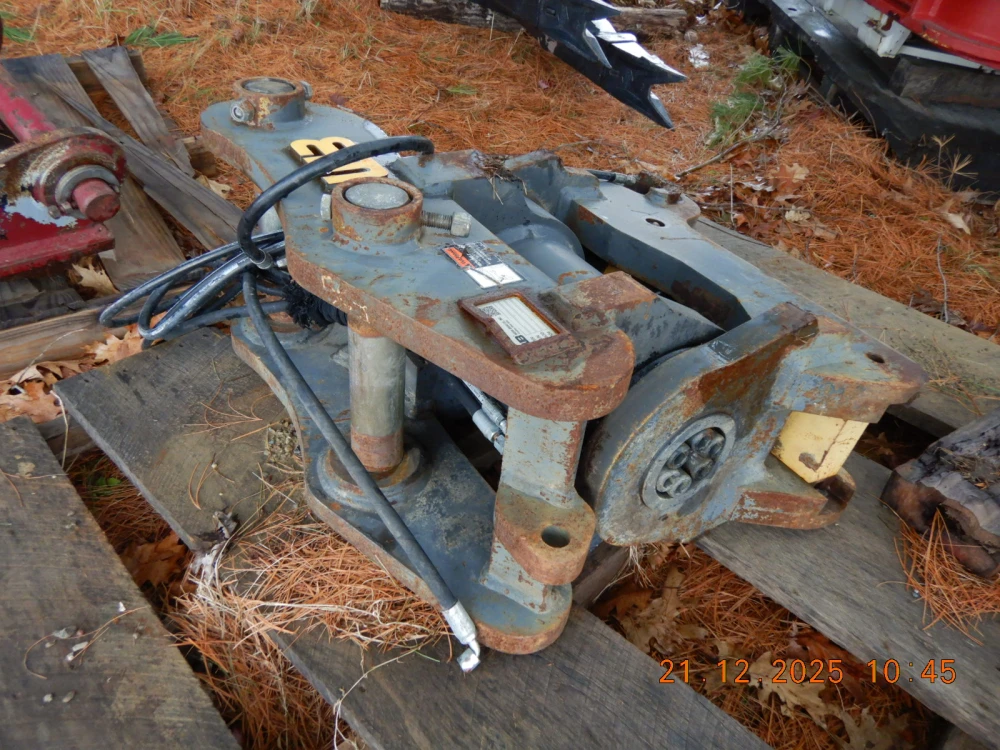

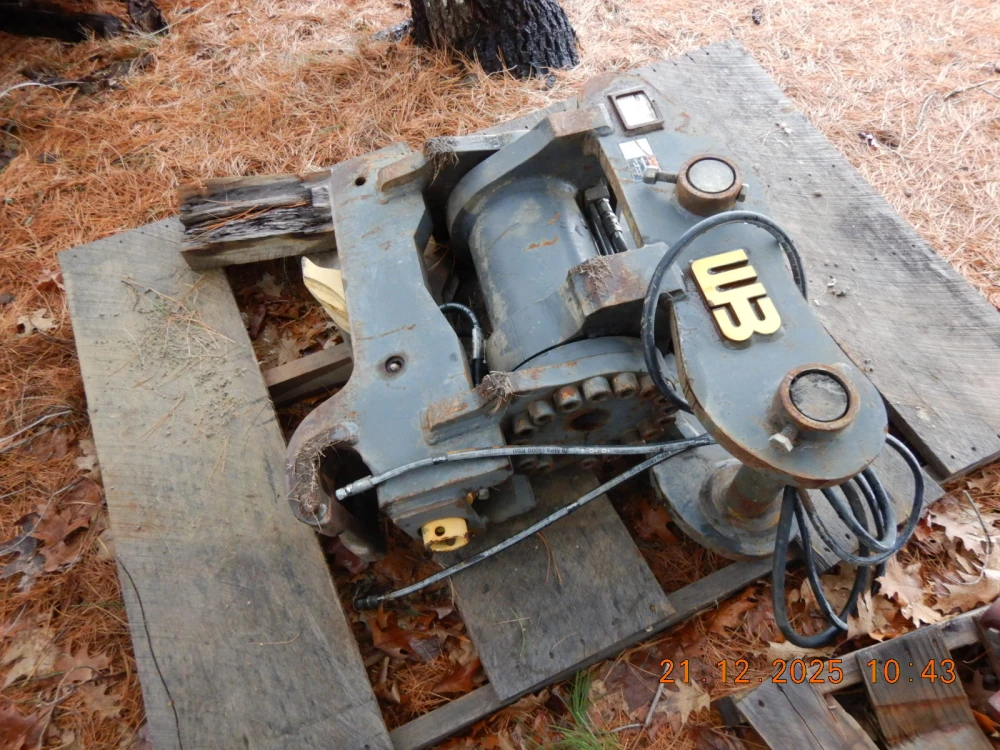

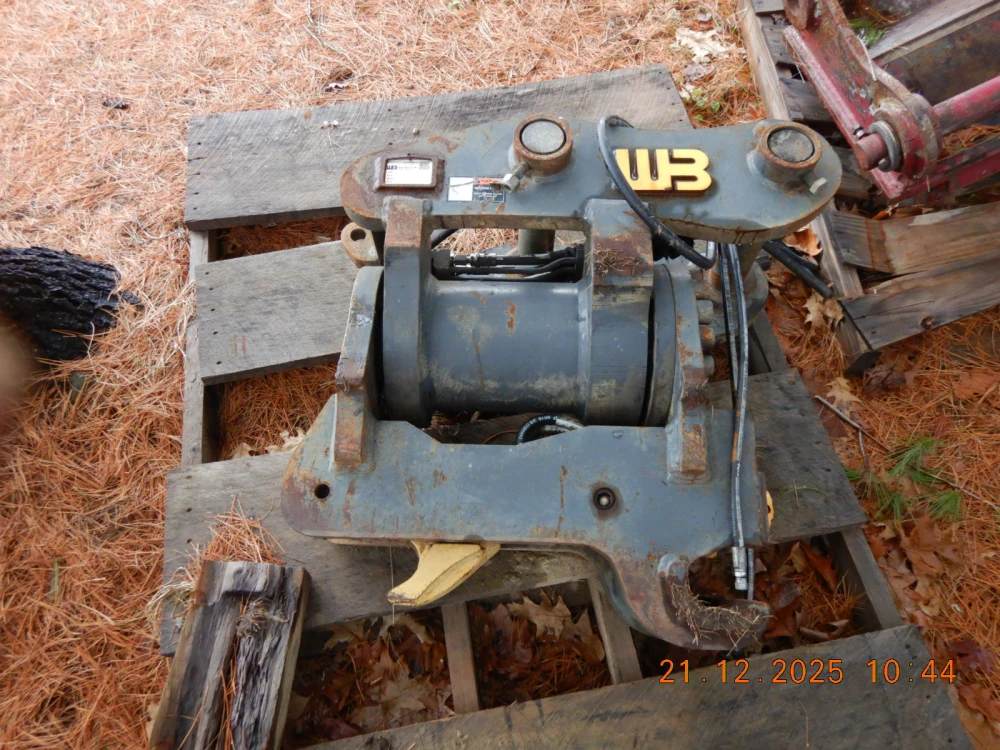

Werk-Brau D-LOCK D-Lock Hydraulic Tilt Coupler FITS EXCAVATORS C/W 65 MM PINS

WAS BUILT FOR AND USED ON A JOHN DEERE 135G EXCAVATOR

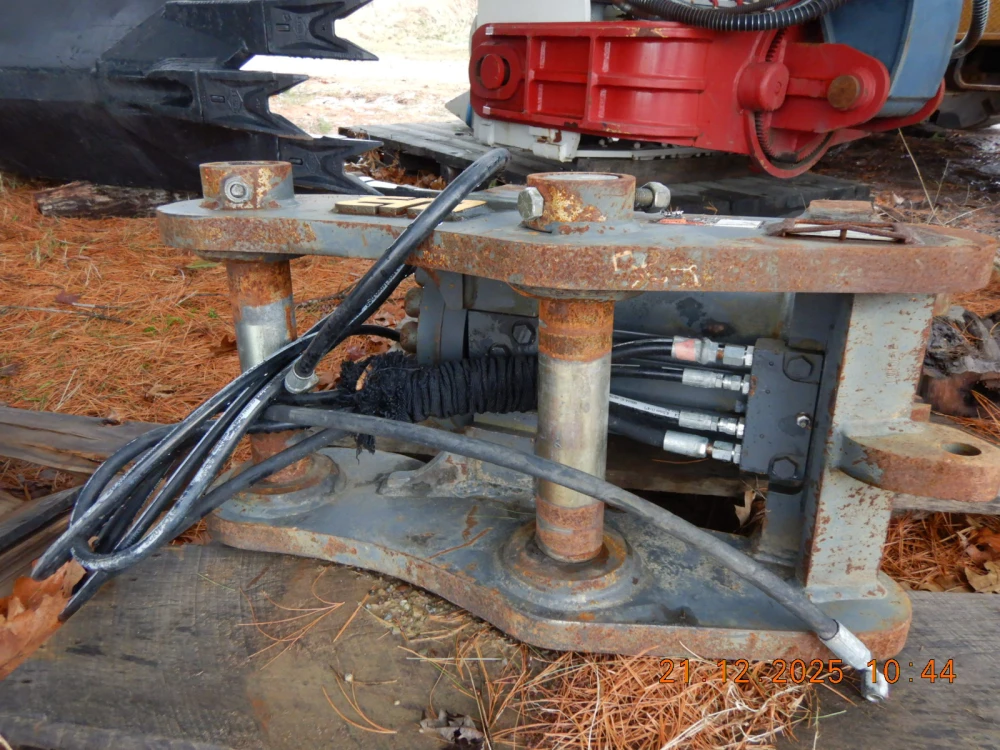

UNIT BUILT THE 25TH DAY OF MAY 2022 - LOW-HOUR TAKE-OFF C/W HYDRAULIC HOSES - READY TO MOUNT AND WORK - ANOTHER 18 INCHES OF 180 DEGREE TILTING REACH WITH A DOUBLE LOCKING PIN GRABBER COUPLER THAT GRABS MULTIPLE ATTACHMENTS

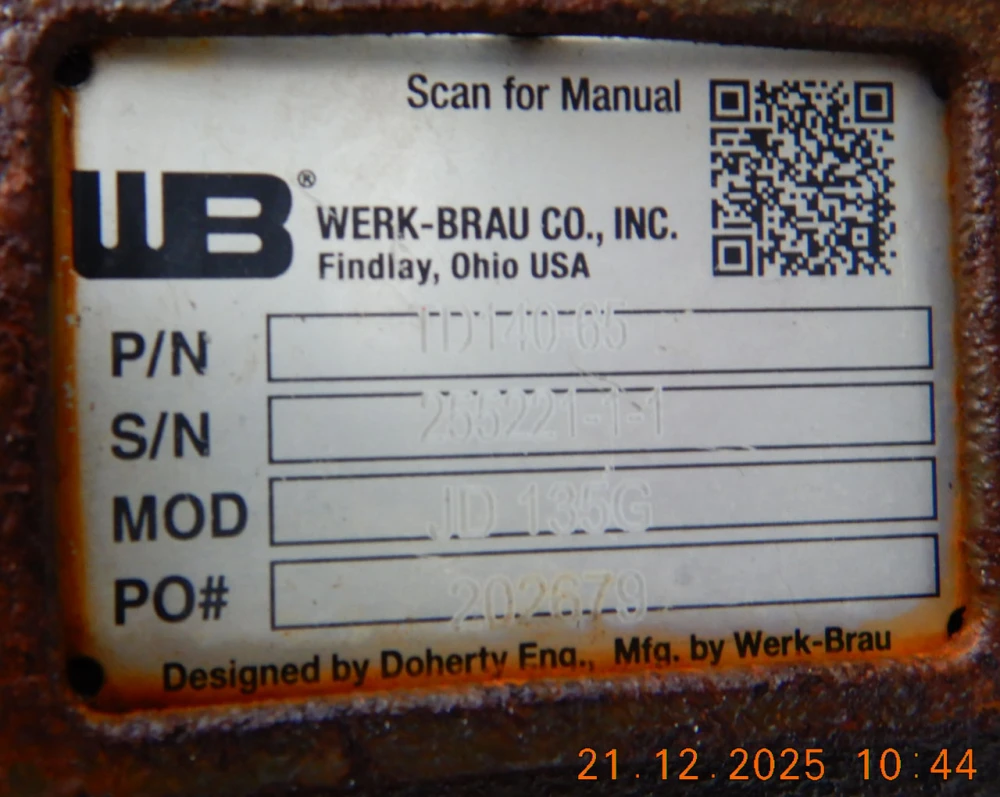

BUILT FOR AND WAS FROM John Deere 135G RTS WITH THE FOLLOWING DIMENSIONS

PINS SIZE - 2.56 INCH OR  65 MM
DISTANCE BETWEEN EARS -10.10 INCH OR 2.56 MM

 FITS ANY OF THE FOLLOWING, INCLUDING:

Case CX130
Case CX135SR

Caterpillar 311C
Caterpillar 312B
Caterpillar 312C
Caterpillar 314C LCR

Daewoo SOLAR 130LC-V
Daewoo SOLAR 140LC-V

Hitachi EX 110-5
Hitachi Zaxis 120
Hitachi Zaxis 135US

John Deere 120C
John Deere 135C RTS

Kobelco 115SRDZ
Kobelco 135SRLC

Komatsu PC 100-6
Komatsu PC 120-6
Komatsu PC 128US-2
Komatsu PC 128UU-2
Komatsu PC 138USLC-2

Link-Belt 130LX
Link-Belt 135SA
Link-Belt 2650 QUANTUM

New Holland EH130

Takeuchi TB1140

Terex TXC 140LC-1

Volvo EC 145

Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.

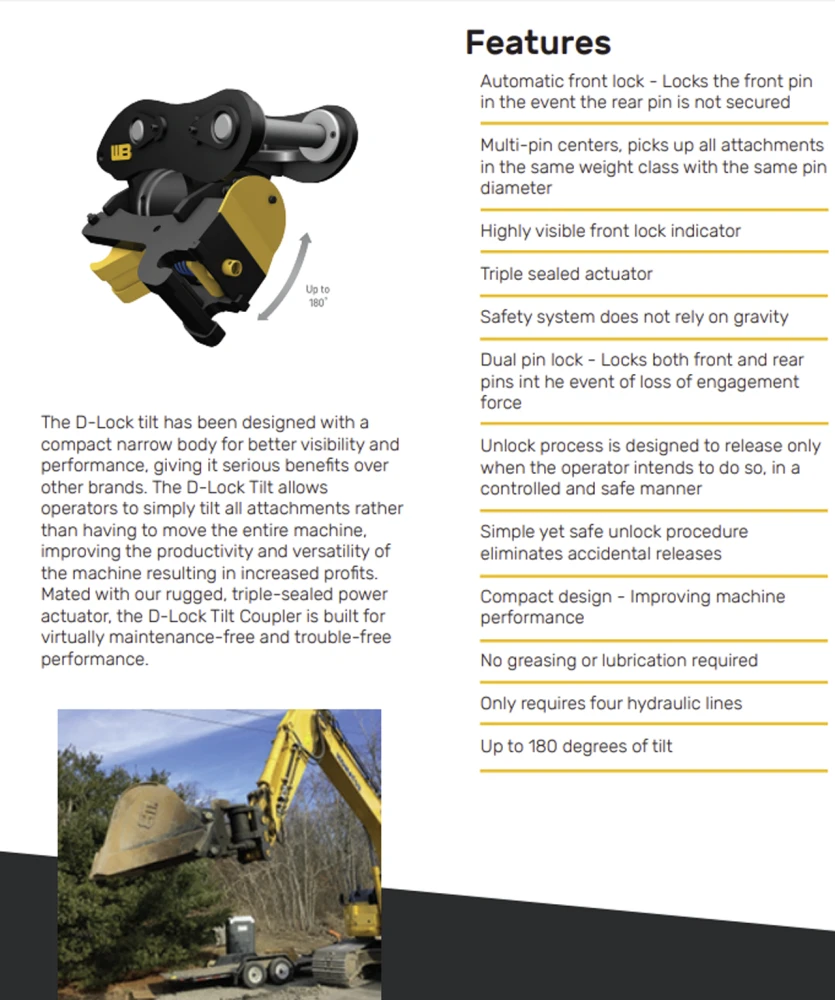

Features:

THIS UNIT FEATURES:

Automatic front lock – Locks the front pin in the event the rear pin is not secured
Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
Highly visible front lock indicator
Triple sealed actuator
Safety system does not rely on gravity
Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
Simple yet safe unlock procedure eliminates accidental releases
Compact design – Improving machine performance
No greasing or lubrication required
Only requires four hydraulic lines

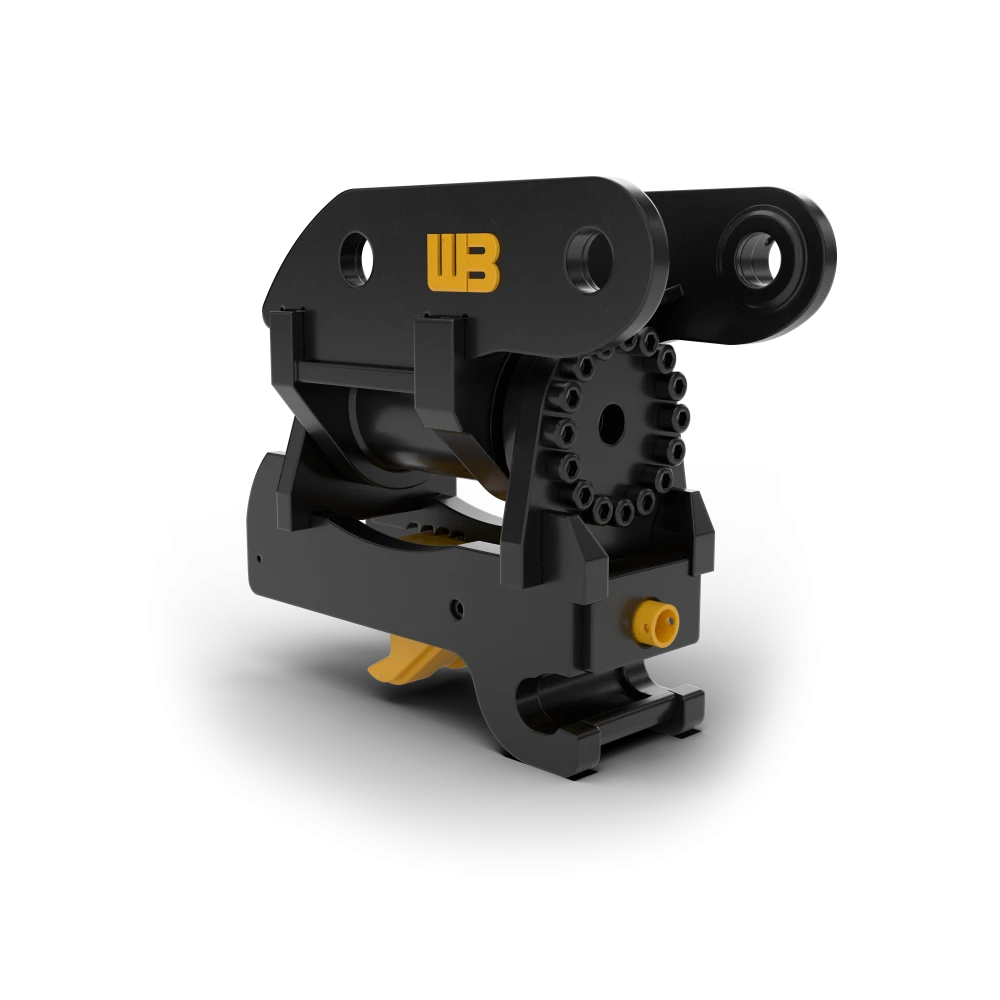

Up to 180 degrees of tilt
Fully guarded hoses

WATCH THE WERBRAU VIDEO (copy and paste)

https://werk-brau.com/wp-content/uploads/2023/09/tilt-coupler-Original.mp4?_=1

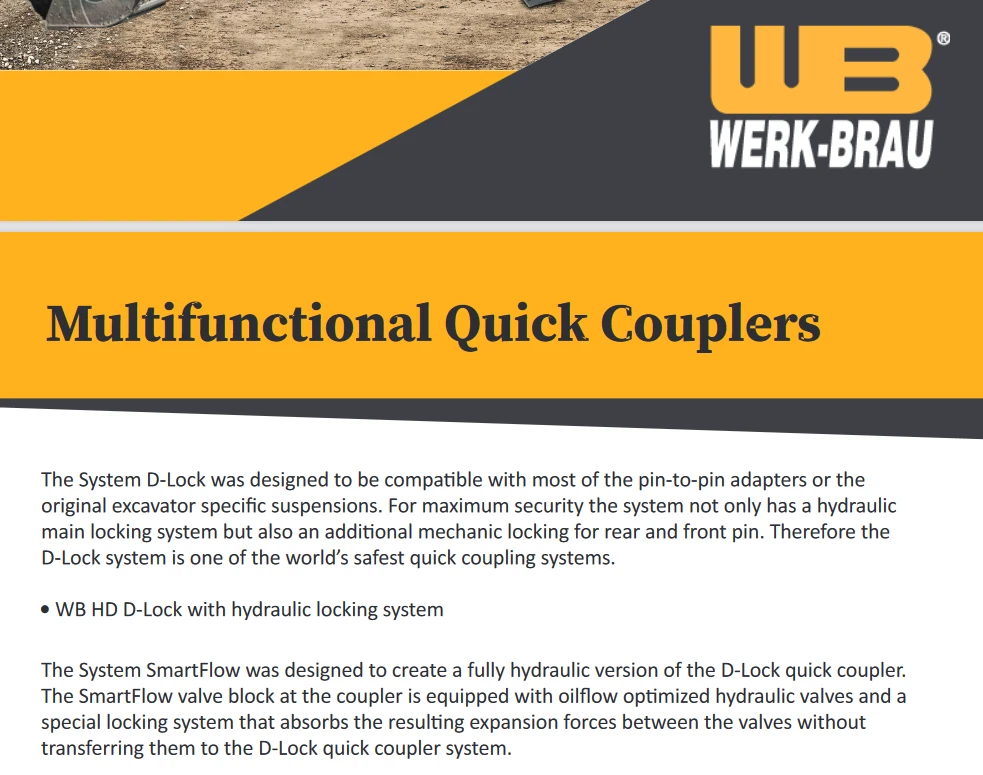

AND THE PDF FILE

https://werk-brau.com/wp-content/uploads/2020/03/NOBLEED-Individual-Tilting-Coupler.pdf


    Automatic front lock – Locks the front pin in the event the rear pin is not secured
    Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
    Highly visible front lock indicator
    Safety system does not rely on gravity
    Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
    Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
    Simple yet safe unlock procedure eliminates accidental releases
    Only requires two hydraulic lines
    Compact design – Improving machine performance
    No greasing or lubrication required

WATCH THE WERBRAU VIDEO FOE THE DLOCK COUPLER

https://youtu.be/c2Q7Kw4o_JA

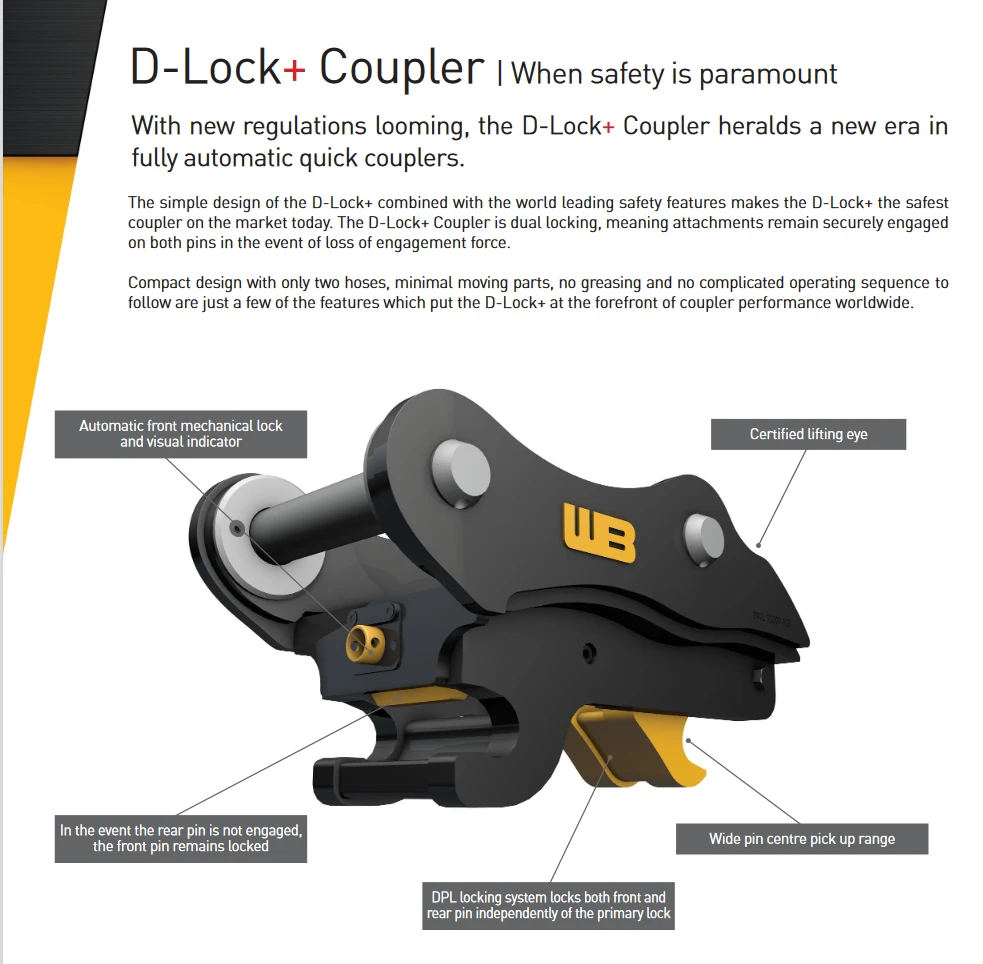

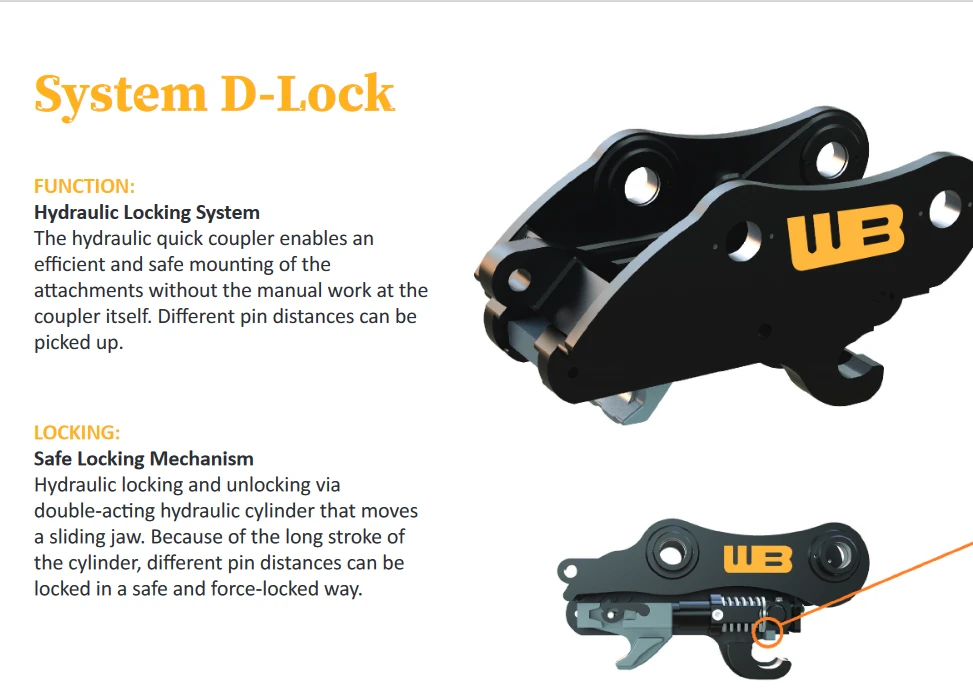

*  The simple, easily serviceable design of the D-Lock combined with world leading safety features makes the
D-Lock the safest coupler on the market today.

 The D-Lock Coupler is dual locking, meaning attachments remain securely engaged on both pins in the event of loss of engagement force.

A compact design of only seven moving parts (fewest in the industry), requiring only two hoses, no greasing and no complicated operating
sequence to follow are just a few of the features which put the D-Lock at the forefront of coupler performance worldwide.

D-LOCK® COUPLER U.S. patent no. 9,677,245

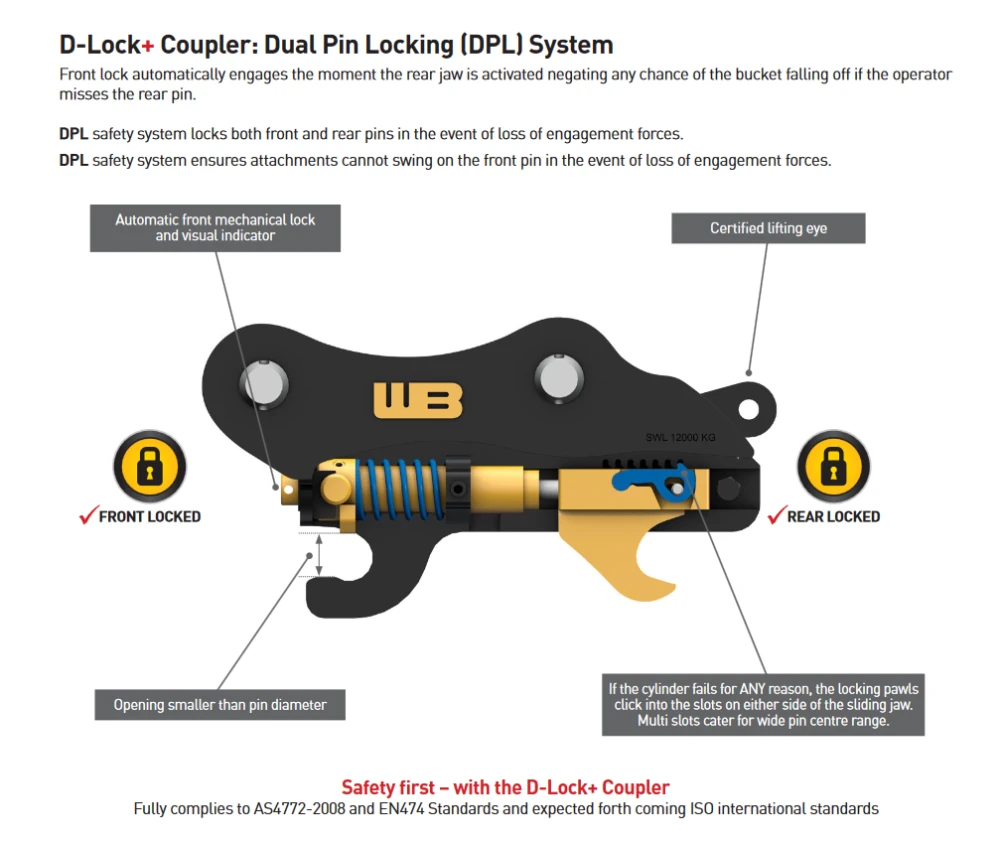

When safety is paramount Automatic front lock – Locks the front pin in the event the rear pin is not secured

Multi pin center, picks up all attachments in the same weight class with the same pin diameter OR less

Highly visible front lock indicator Safety system does not rely on gravity

Dual pin lock – Locks both front and rear pins in the event of loss of engagement force

Simple yet safe unlock procedure eliminates accidental releases.

Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner, and prevents accidental release

 Patented slide lock design*

Compact design – Improving machine performance Only requires two hydraulic lines Fewest parts in industry (8)

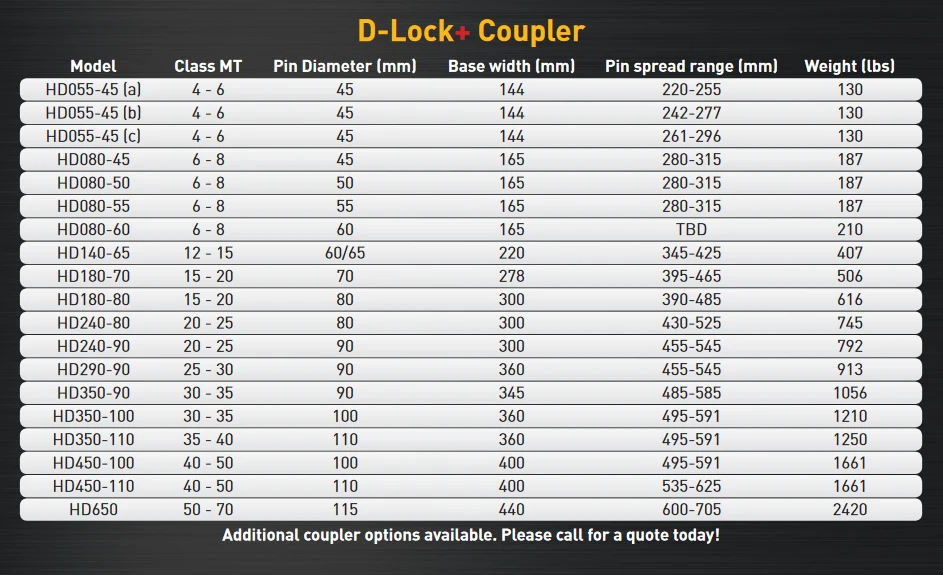

No greasing or lubrication required Available for all machines from 1.5 to 120 tons
